Home / Products / Wind-Turbine Grid Tie Inverter / 1000W WAL Wind-Turbine Inverter

Reliable /  Stable / Smart/  Safe

SUN-1000G2-WAL-M  |  SUN-1000G2-WAL-H

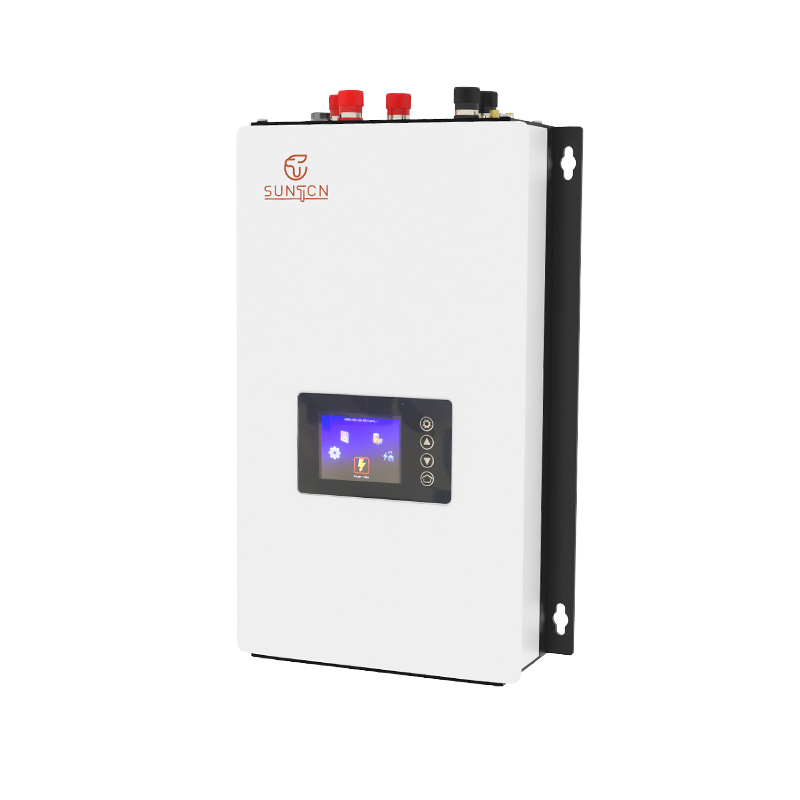

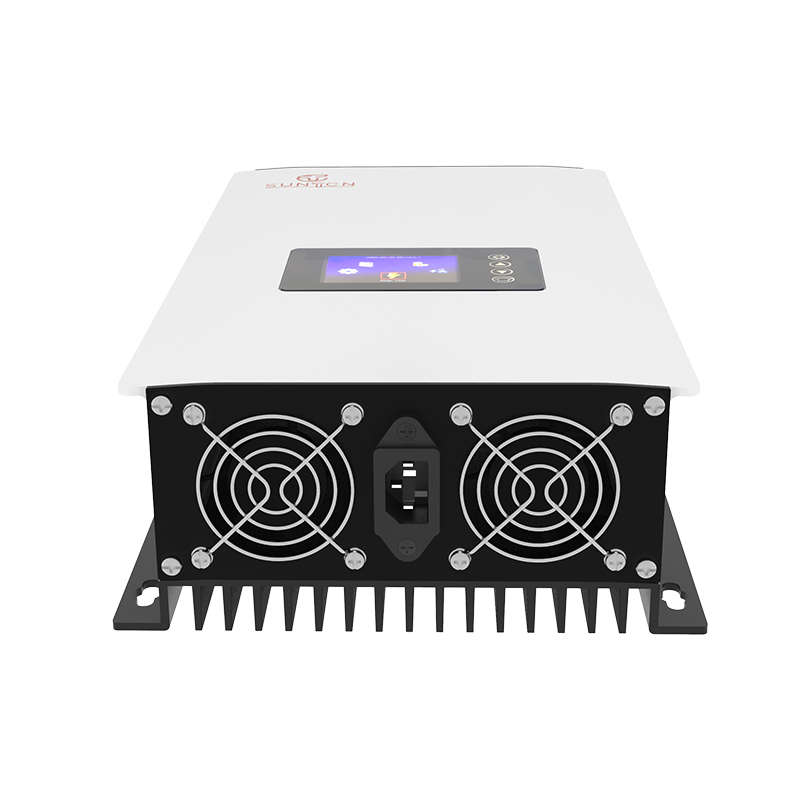

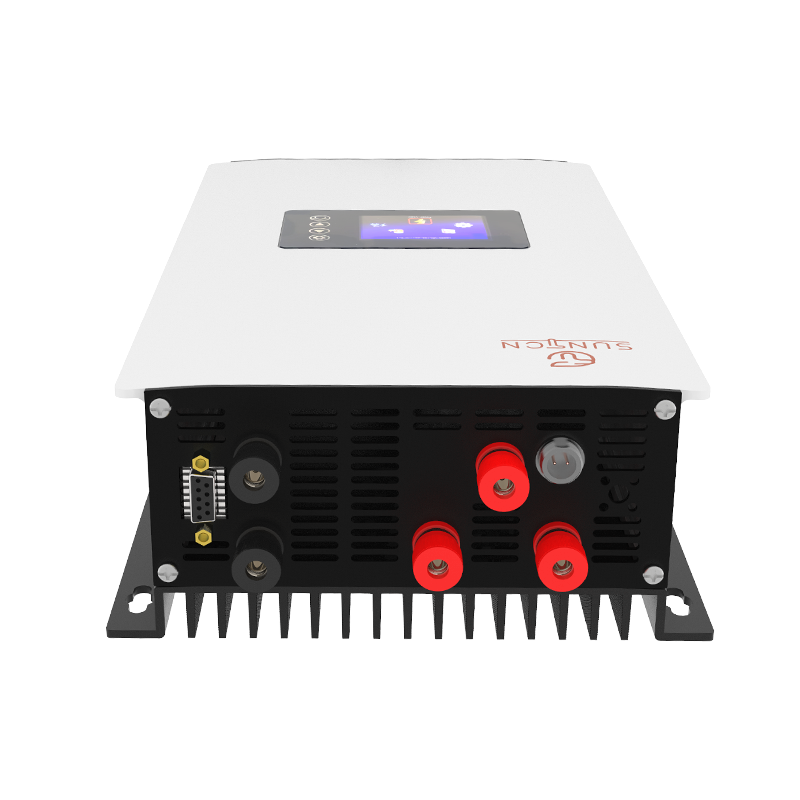

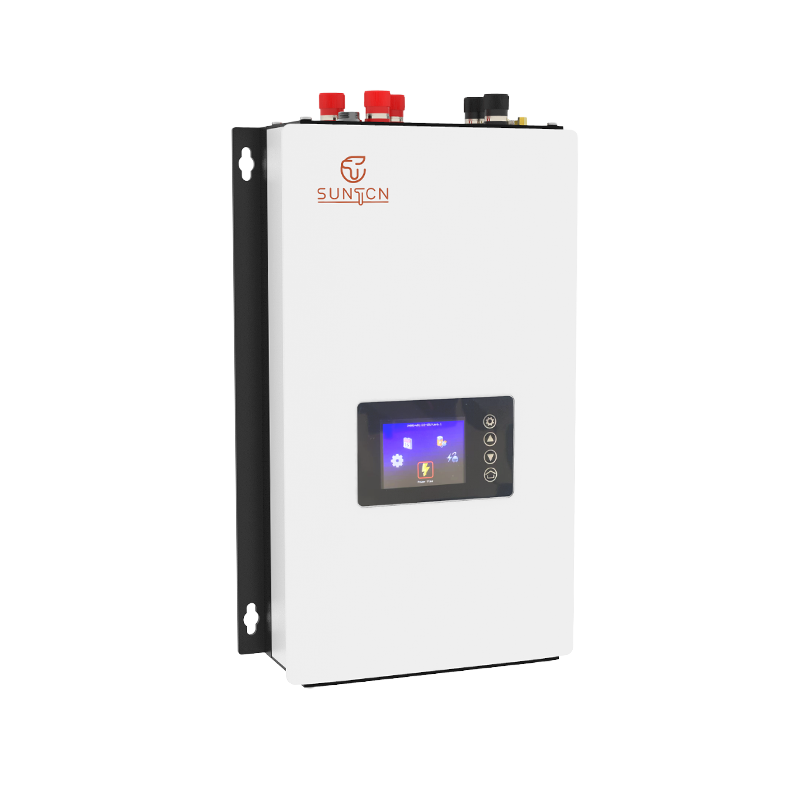

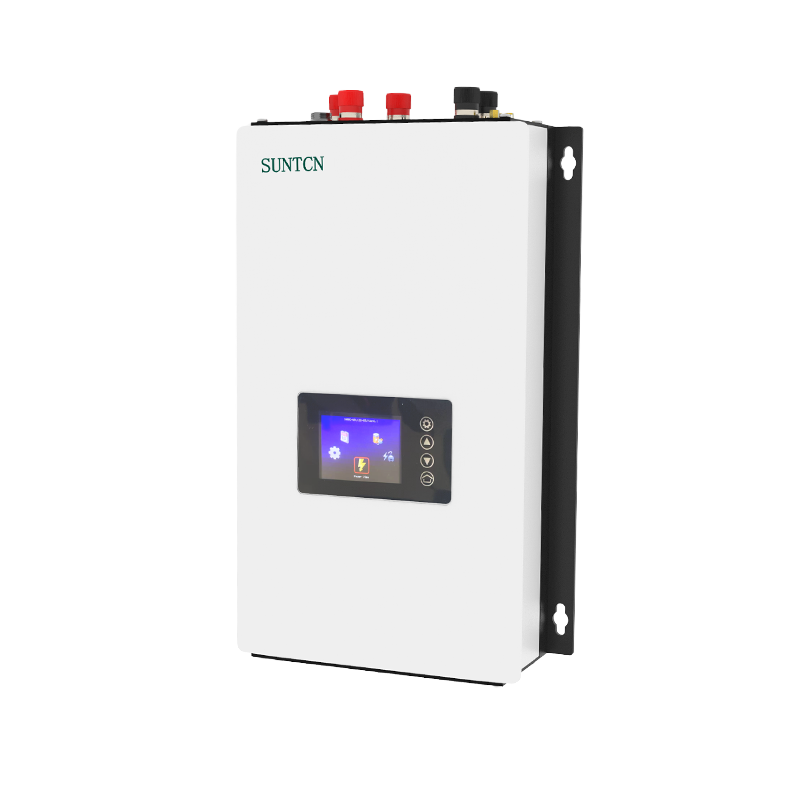

1000W WAL Wind-Turbine Inverter

Built-in dump Load controller / three phases AC output

SUNTCN Wind-Turbine Grid Tie Inverter WAL series is the most technologically advanced inverter for use in utility-interactive applications. The integrated system maximizes energy harvest, increases system reliability, and simplifies design, installation, and management. The DC input range of the"WAL" mode inverter is different from the"WDL" type, the test point is at the DC side of the built-in rectifier of the inverter, and you can calculate from 3 phases of the AC output voltage of the wind turbine to get the DC voltage, the formula is Vac=Vdc/1.732. For example, if the DC input voltage range of the inverter is 45~90V, then the wind turbine's output AC range should be 45/1.732~90/1.732 = AC 26V~ 52V.


SUN-1000G2-WAL has two types:

Model DC Input Voltage AC Output Voltage
SUN-1000G2-WAL-M 22V-65V 95V-140V
185V-265V
SUN-1000G2-WAL-H 45V-90V 95V-140V
185V-265V

Ningbo Yisheng Electronics Co., Ltd.
  • Ningbo Yisheng Electronics Co., Ltd.
  • Ningbo Yisheng Electronics Co., Ltd.
  • Ningbo Yisheng Electronics Co., Ltd.
  • Ningbo Yisheng Electronics Co., Ltd.
  • Ningbo Yisheng Electronics Co., Ltd.
1000W WAL Wind-Turbine Inverter

Built-in dump Load controller / three phases AC output

  • Built-in Dump Load Controller
  • Three phase AC input from wind turbine
  • Single Phase AC to Grid (100V 110V 120V 220V 230V 240V )
  • Built-in Power Limit Function
Advantage
  • {$config.cms_name}
    Multiple intelligent protection
    to ensure safe use
  • {$config.cms_name}
    Directly connect to three
    phase wind turbine, without
    a regulator
  • {$config.cms_name}
    Easy to install and easy
    to operate
  • {$config.cms_name}
    Pure Sine Wave output
  • {$config.cms_name}
    Power Limit Function
